REDEFINING PRECISION EMBOLIZATION

SCRUNCHY delivers fast, secure occlusion 2–9 mm with only two sizes ALL delivered through a microcatheter.

Not approved for sale in the US or any markets

The Future of Embolization

Existing Plugs

Pros

  • High occlusion efficiency
  • Short & precise landing Zone
  • Fewer devices required


Cons

  • Limited microcatheter options

Standard Microcoils

Pros

  • Ease of use
  • Dense packing
  • Wide range of options


Cons

  • Numerous devices required
  • Longer procedural times

Next Generation Embolic

Pros

  • High occlusion efficiency
  • Short & precise landing Zone
  • Largest vessel treatment range with fewer devices required

Not approved for sale in the US or any markets

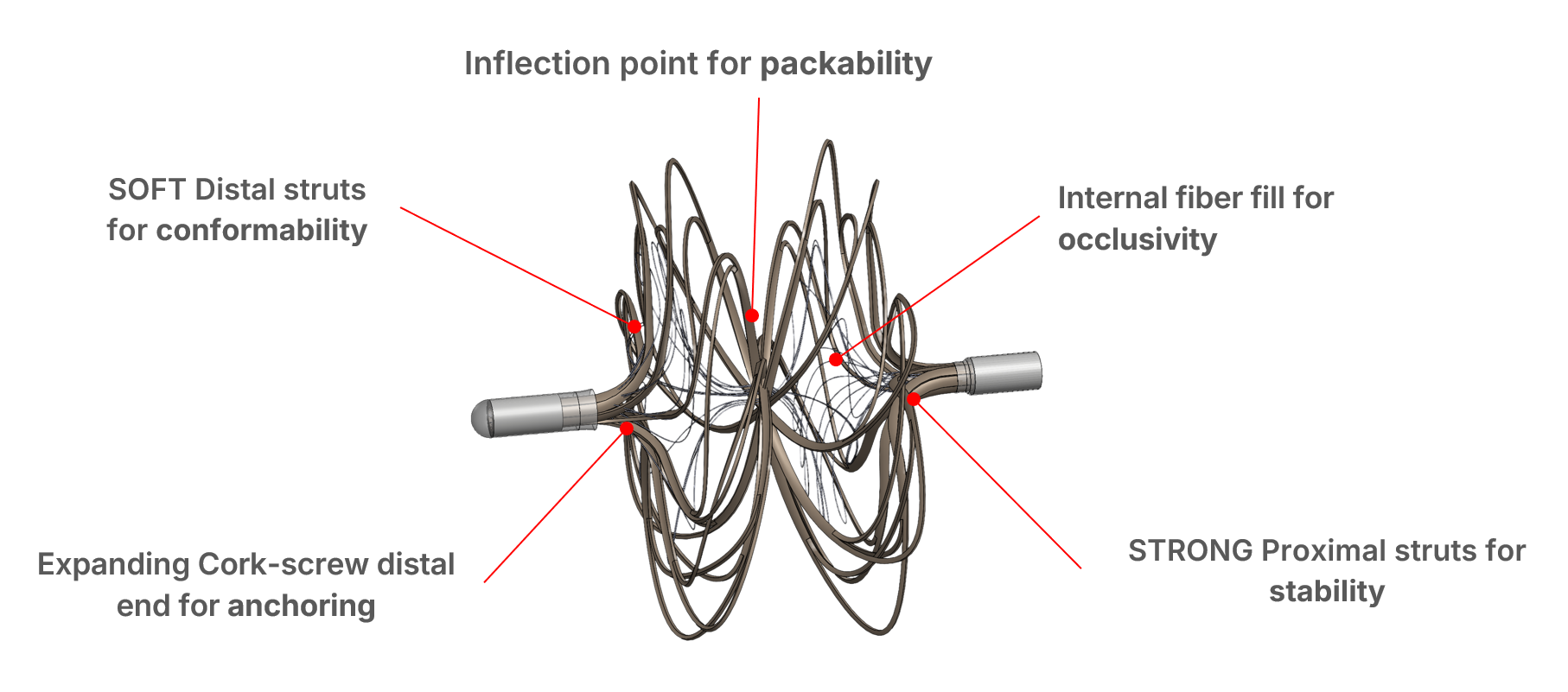

Rethinking Embolization Technology

  1. Nitinol Frame
  2. Laser Cut
  3. Fiber Fill
  4. Thermally Shape Set
  5. Marker Bands

Not approved for sale in the US or any markets

THE SCRUNCHY® SOLUTION

The SCRUNCHY® platform is designed to be the most versatile embolization system available, engineered for physicians needs.



The microcatheter system offers the widest range of vessel treatment.

2-9mm vessels with only 2 SKUs

MICROCATHETER | 0.027” ID

Not approved for sale in the US or any markets

SCRUNCHY DEPLOYMENT

Large SCRUNCHY® pushing the boundary in vessel treatment range in a single device.

  • Wide Range
  • Precise Delivery with immediate anchoring
  • Dense packing
  • Retractable

Not approved for sale in the US or any markets

HOW IT WORKS - HELICALLY AND RADIALLY EXPANDS

Not approved for sale in the US or any markets

PRODUCT OFFERING

The SCRUNCHY® Platform will be offered in Pushable and Detachable versions to provide options for maximum flexibility.

Model ID Vessel Range Expanded OD Length (Constrained) Estimated Landing Zone Delivery Catheter ID
SCY-6-P 2-6 mm 8.5 mm 2.5 cm 10-20mm 0.027”
SCY-6-P 2-6 mm 8.5 mm 2.5 cm 10-20mm 0.027”
SCY-9-D 5-9mm 16 mm 4.5 cm 15-25mm 0.027”
SCY-9-D 5-9mm 16 mm 4.5 cm 15-25mm 0.027”

Not approved for sale in the US or any markets

IMPROVING CURRENT INVENTORY EFFICIENCIES

85%

SKU REDUCTION

Not approved for sale in the US or any markets

PRE-CLINICAL TESTING

Extensive testing has demonstrated good occlusion times, precise deployment with short landing zones


  • Occlusion in under 3 minutes
  • Strong anchoring with ~1 cm landing zone
  • Precise deployment with self-anchoring frame

Not approved for sale in the US or any markets

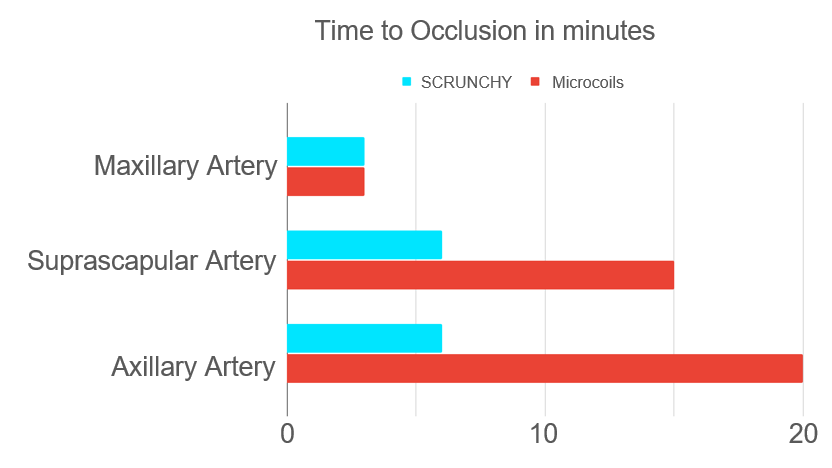

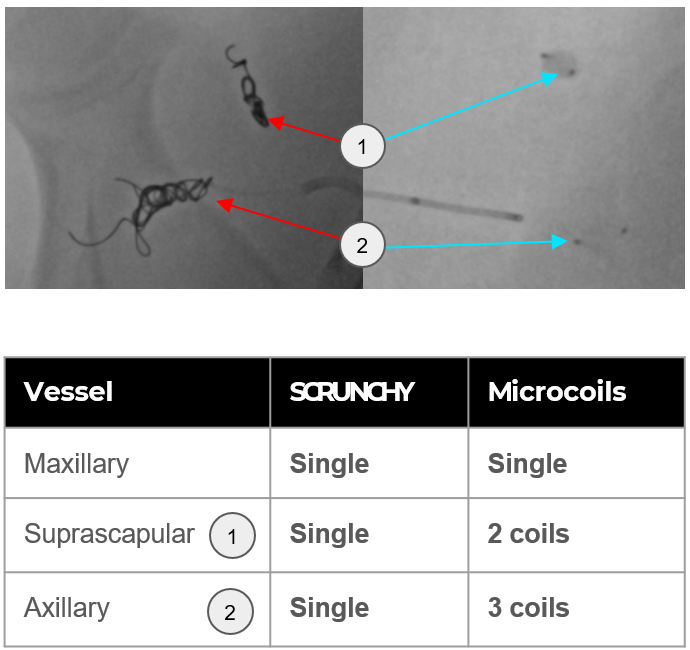

BENCHMARK TESTING

The SCRUNCHY platform achieved quicker occlusion times and with fewer devices on average compared to a leading competitor in microcoils

Not approved for sale in the US or any markets

MAXIMUM VERSATILITY

Other potential usage with The SCRUNCHY® platform:

Backstop that enables combination embolization procedures

Not approved for sale in the US or any markets

PROFILE AND PROFICIENCY IN ONE DEVICE

  • High occlusion efficiency
  • Short & precise landing zone
  • Largest vessel treatment range with fewer devices required
  • 027 microcatheter compatible

Not approved for sale in the US or any markets
